Product Introduction
ZAM Rectangular Steel Pipe is manufactured from zinc-aluminum-magnesium (Zn-Al-Mg) coated steel strip, using cold bending and high-frequency resistance welding (ERW) processes. It is widely used in photovoltaic brackets, steel structure buildings, agricultural greenhouses, warehouse racking, municipal fences, transportation facilities, and industrial equipment manufacturing.
Product Performance Comparison
|
Comparison Item |
GI Pipe |
HDG Pipe |
ZAM Rectangular Pipe |
|
Corrosion Resistance |
Moderate |
Good |
Excellent |
|
Cut Edge Protection |
Poor |
Good |
Excellent |
|
Surface Flatness |
Good |
Moderate |
Excellent |
|
Processing Performance |
Good |
Moderate |
Excellent |
|
Maintenance Requirement |
High |
Medium |
Low |
|
Service Life |
Standard |
Long |
Longer |
|
Life Cycle Cost |
High |
Medium |
Low |
Technical Specifications
|
Item |
Specification |
|
Product Name |
ZAM Rectangular Steel Pipe |
|
Section Type |
Rectangular Hollow Section (RHS) |
|
Manufacturing Process |
Cold Forming + ERW Welding |
|
Coating Type |
Zinc-Aluminum-Magnesium (ZAM) |
|
Coating Weight |
ZM60-ZM350 g/m² |
|
Steel Grade |
DX51D+ZM, DX52D+ZM, S250GD, S280GD, S320GD, S350GD, Q195, Q235, Q355 |
|
Width Range |
20 × 30 mm – 300 × 500 mm |
|
Wall Thickness |
0.8 mm – 12.0 mm |
|
Length |
3 m – 12 m or Customized |
|
Surface Treatment |
Passivation / Anti-fingerprint / Oiled |
|
Standard |
ASTM, EN, JIS, GB, AS/NZS |
|
Tolerance |
According to Standard |
|
Application |
Solar, Construction, Greenhouse, Structure |
|
Inspection Documents |
MTC EN10204 3.1 |
|
Certification |
ISO 9001 |
|
Packaging |
Bundles / Waterproof Package |
|
Origin |
China |
Material and Standards
Available Steel Grades: Supports steel grades such as DX51D+ZM, DX52D+ZM, S250GD, S280GD, S320GD, S350GD, Q195, Q235, and Q355. Different strength grades can be selected according to project requirements.
Standards: Supports international standards such as ASTM, EN, JIS, GB, and AS/NZS. Custom production is also available according to customer drawings or technical agreements.
Quality Documents: Provides MTC EN10204 3.1 material certification and supports third-party inspection services such as SGS, BV, and TUV.
Manufacturing Process
Raw Material Inspection: Chemical composition, mechanical properties, and coating weight of steel coils are tested to ensure that raw materials meet production requirements.
Precision Forming: Employs multi-pass roll forming technology to ensure dimensional accuracy and cross-sectional squareness of steel pipes.
High-Frequency Welding: Utilizes ERW high-frequency welding technology to achieve stable weld quality and good structural strength.
Online Sizing: Controlling dimensional tolerances through a sizing unit improves product consistency.
Finished Product Inspection: Inspecting dimensions, wall thickness, appearance, and mechanical properties before warehousing and packaging.
Custom Processing Capabilities
Custom Specifications: Supporting non-standard sizes, special wall thicknesses, and fixed lengths.
Custom Materials: Supporting different steel grades and mechanical property requirements.
Custom Coatings: Supporting customized ZAM coating weights.
Deep Processing Services: Supporting cutting, punching, welding, bending, and laser processing.
OEM Services: Supporting customization of customer logos, labels, markings, and packaging.
Quality Control
Raw Material Inspection: Inspecting the chemical composition, mechanical properties, and coating parameters of the steel.
Production Process Control: Strictly monitoring forming, welding, and dimensional tolerances to ensure product stability.
Finished Product Inspection: Inspecting dimensions, wall thickness, appearance quality, and mechanical properties.
Third-Party Testing Support: Supporting inspection and testing by third-party organizations such as SGS, BV, and TUV.
Testing Equipment: Equipped with a spectrometer, universal testing machine, coating thickness gauge, salt spray chamber, and hydrostatic testing equipment.

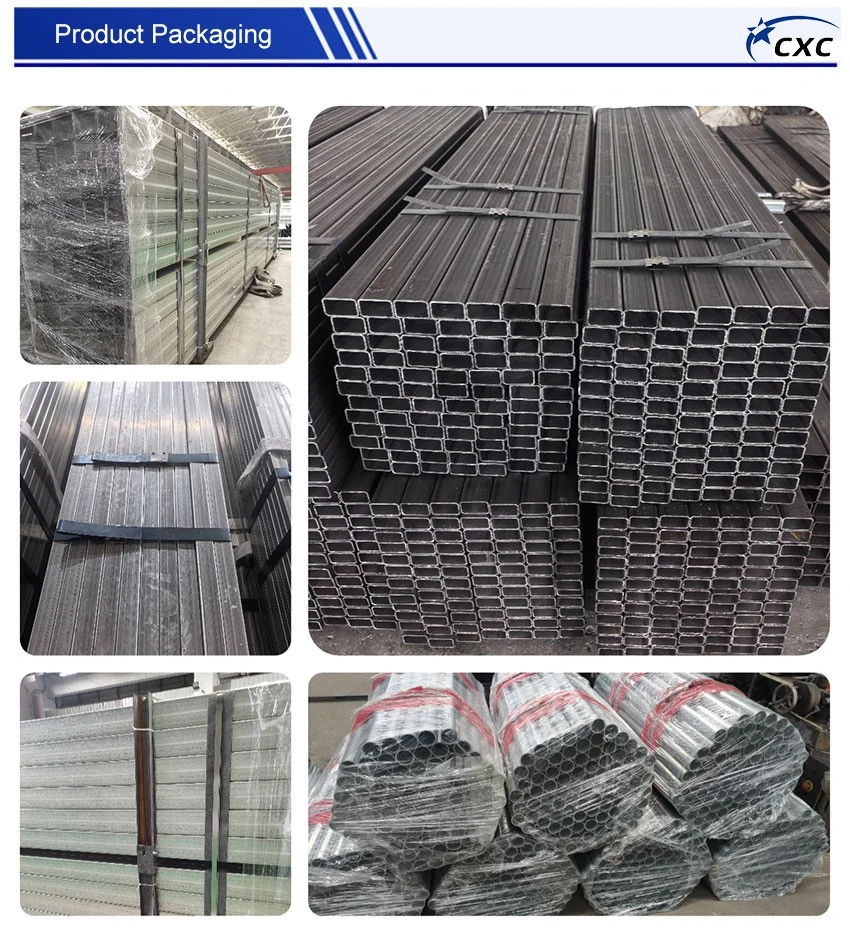

Packaging and Transportation
Export Standard Packaging: Steel strapping, plastic corner protectors, and waterproof packaging reduce the risk of damage during transportation.
Container Shipping: Supports 20GP, 40GP, and 40HQ container shipments.
Customized Packaging: Supports customer-specified markings, labels, and packaging solutions.
FAQ
Q: What is ZAM coating?
A: ZAM is a zinc, aluminum, and magnesium alloy coating with excellent corrosion resistance and cut protection.
Q: What are the advantages compared to ordinary galvanized steel pipes?
A: Better corrosion resistance, longer service life, and lower maintenance costs.
Q: Can it be manufactured according to ASTM or EN standards?
A: Yes, it supports international standards such as ASTM, EN, JIS, and GB.
Q: Can sizes and lengths be customized?
A: Custom sizes, lengths, wall thicknesses, and steel grades are supported.
Q: Can samples be provided?
A: Samples can be provided for testing according to specific specifications.
Q: What quality documents can be provided?
A: MTC EN10204 3.1 and related test reports can be provided.
Q: Does it support third-party inspection?
A: SGS, BV, TUV, and other third-party inspection agencies are supported.
Q: What processing services are provided?
A: Supports cutting, punching, welding, and laser processing.
Q: What are the packaging options?
A: Supports steel strapping, waterproof packaging, and customized export packaging.
Q: Is OEM service supported?
A: Supports logo, label, packaging, and OEM customization services.
